CNC Machining of Gears: Processes, Accuracy Control, and Industrial Applications

What Is Gear Machining?

A gear does not only need to meet nominal dimensional requirements. A gear has to carry a load smoothly and operate quietly at speed without causing accelerated wear or damage over millions of load cycles. Gear machining is a precision manufacturing process that produces gears by cutting, refining, and finishing tooth geometry to ensure predictable load behavior, controlled accuracy, and long-term motion reliability in mechanical systems.

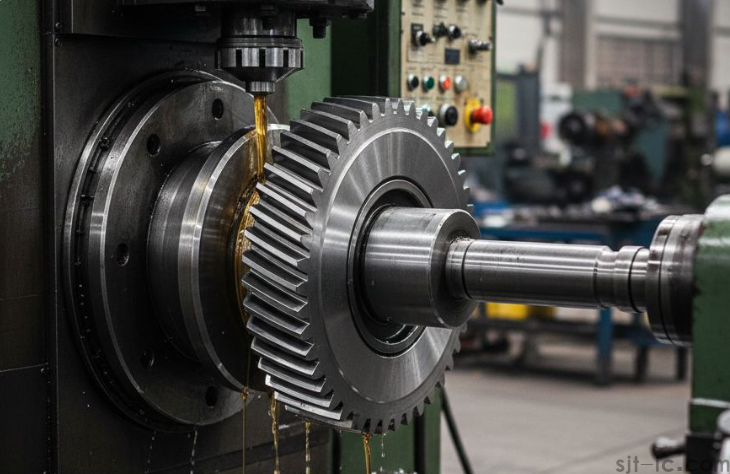

Gear machining refers to a CNC-driven workflow that controls tooth geometry, load transfer behavior, and motion accuracy across multiple cutting and finishing stages. It is not a single operation. It is a sequence of operations that shape, refine, and correct tooth geometry until the gear performs as intended in its final assembly.

The gear machining process is used to control several critical outcomes:

• Tooth profile accuracy – determines how evenly the load is shared across the gear face

• Pitch and spacing consistency – directly affects vibration and noise

• Surface finish – influences wear rate and heat generation

• Contact pattern – decides whether the gear runs quietly or destroys itself over time

Gear cutting alone is rarely enough for anything beyond low-duty applications. You can machine a gear blank and cut teeth that meet nominal dimensions, yet still result in excessive noise, uneven wear, or premature failure during operation. The problems usually don’t show up during inspection; they show up after hours of operation.

From a functional standpoint, machining gears is about managing how force moves through rotating parts. If tooth geometry is even slightly off, the load concentrates instead of being distributed. This leads to localized stress concentration, increased heat generation, and over time, surface pitting or tooth breakage.

CNC gear machining matters because it allows those variables to be controlled consistently. A properly machined CNC gear doesn’t just match a CAD model. It repeats the same contact behavior from part to part. Repeatability is the line between an experimental prototype and a piece of gear you can actually trust on a production floor. Producing a single functional gear is relatively straightforward; achieving consistent performance across large production volumes is significantly more challenging.

Key Factors Affecting Gear Machining Accuracy

Gear accuracy isn’t controlled by a single machine or operation. It’s the combined result of design intent, machine behavior, and how materials respond throughout the machining process.

Tooth Geometry and Profile Control

The involute profile defines how gears transmit load. Even small deviations affect:

• Contact ratio

• Noise generation

• Load concentration

Gear machining accuracy depends on:

• Tool geometry consistency

• CNC interpolation accuracy

• Proper profile modification (crowning, tip relief)

Design intent matters here. Gears designed without realistic manufacturing tolerances often force downstream compromises that degrade performance.

Machine Rigidity and CNC Control Capability

Gear machining is highly sensitive to deflection and control lag.

Key influences:

• Spindle stiffness under cutting load

• Axis backlash and thermal stability

• Synchronization accuracy between rotary and linear axes

A rigid machine with mediocre control can outperform a high-end CNC if process stability is poor. For fine-pitch or hardened gears, even micron-level deflection shows up in tooth contact patterns.

Material Behavior and Heat Treatment Impact

Material choice affects every stage of machining. Factors include:

• Machinability before hardening

• Distortion tendency during heat treatment

• Grindability after hardening

For example:

• Case-hardened steels require precise allowance planning

• Through-hardened materials limit post-treatment correction

• Powder metallurgy gears behave very differently from forged steel

Understanding material behavior allows engineers to design the process, not just react to defects.

Gear Quality Classification

Gears are normally classified according to a standard specifying tolerance requirements. The most common standard for cylindrical gear classification is DIN 3962, where different gear parameters are measured and classified on a 1–12 scale. Gear quality class is generally determined by component requirements and depends on the gear wheel application area.

Other demands for good gear quality include:

• High-quality tools

• Clean contact surfaces

• Minimum run-out both on tool and workpiece

• Stable clamping

• Accurate and stable machine

Gear Machining Methods

Gear machining typically falls into two main categories: generating methods and forming methods.

Generating Methods

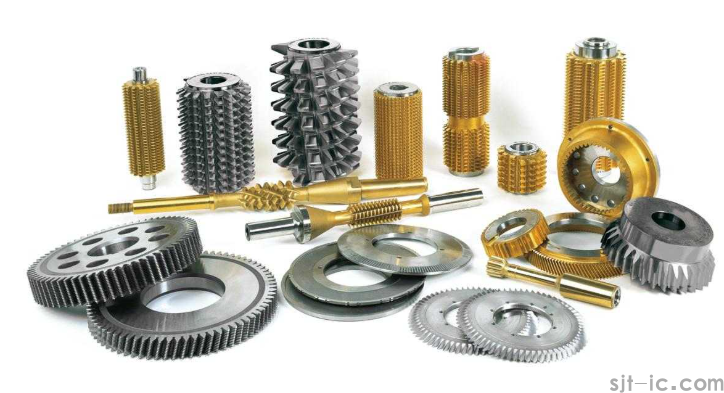

Hobbing – the most widely used method for machining gears in volume. The hob continuously engages the blank, producing smooth tooth spacing and good pitch accuracy. It’s efficient and flexible, but final accuracy depends heavily on machine stiffness and hob condition. Hobbing is only possible for external gears. Gear profiles according to DIN 3972-2, module range 3–10.

Gear shaping – uses a reciprocating cutter (pinion cutter) to generate teeth one space at a time. It’s slower than hobbing but allows internal gears and shoulder-clear designs that hobbing can’t handle. Shaping is often chosen for custom gear machining where geometry limits other methods. The cutter and gear blank are connected by gears so that they don’t roll together as the cutter reciprocates. This method is commonly used for cutting spur gears, herringbone gears, and ratchet gears.

Sunderland Method (rack-type cutter) – uses a rack cutter with rake and clearance angles to create the tooth profile. This method is excellent at creating teeth of uniform shape, and all gears cut by the same cutter will gear correctly with one another. It is versatile and cost-effective, especially for medium to high-volume production runs.

Power skiving – a continuous cutting process that is multiple times faster than shaping and more flexible than broaching. Power skiving can be applied to both internal and external gears and splines, but it is especially productive for internal machining. The method works particularly well in mass production where short lead times are decisive. Power skiving will ｒｅｐｌａｃｅ shaping, broaching, spline rolling, and hobbing to some extent. It can be applied in dedicated machines, multi-task machines, and machining centers.

InvoMilling™ (EMAR) – a process for machining external gears, splines, and straight bevel gears that allows for in-house gear milling in standard machines. By changing the CNC program instead of changing the tool, one tool set can be used for many gear profiles. Complete components can be machined in one set-up using multi-task machines or a five-axis machining center. Module range: 0.8–100. For small to medium batch production. EMAR’s InvoMilling™ process can run dry without cutting oil.

Form Cutting Methods

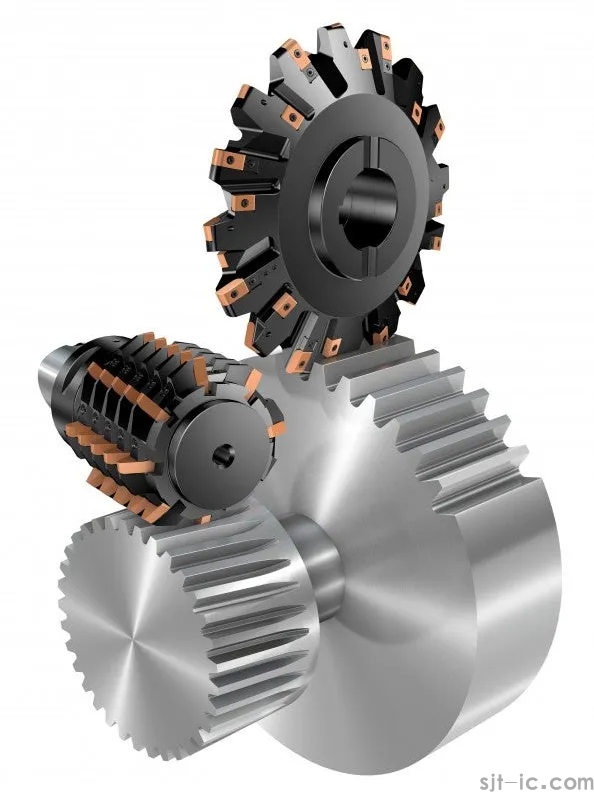

Gear milling – uses a form cutter where the teeth of a T-slot cutter are shaped into a gear profile. Gear grooves are processed one at a time, so a high-precision indexing table is necessary. Although processing each groove individually results in longer cycle times, gear milling can reach areas that would otherwise be inaccessible with a hob cutter due to interference.

Gear machining by milling – cuts each tooth groove individually using tools such as end mills. This method does not require dedicated gear-cutting tools, allowing the use of general-purpose milling tools, which makes it especially suitable for prototyping and small-lot production.

Disc cutting – a process where one tooth gap at a time is cut. Disc cutting methods are easily applied in machining centers, multi-task machines, and turning centers, making it possible to machine complete components in one set-up. Splines typically made in hobbing machines can instead be machined in-house with existing machines. Advantages include low investment costs, high cutting speeds, dry machining, and cost-efficient solution for small to medium batch sizes.

Shaping, planing, and slotting – form cutting techniques useful for repair and maintenance. Shaping fixes the workpiece while the tool moves back and forth. Planing fixes the tool while the workpiece travels. Slotting holds the workpiece stationary while the tool moves up and down.

Electrical discharge machining (EDM) – an electromechanical process where material is removed by applying a series of current discharges between two electrodes separated by a dielectric bath liquid. EDM is good at cutting complex geometries of all sizes and can achieve tight tolerances as small as thousandths of an inch.

Forming Methods (Non-Cutting)

Rolling – one of the oldest gear forming processes that hot or cold rolls a blank workpiece through two or three dies. When material saving is a critical concern, rolling is a good option since there’s no chip generation.

Casting – molten metal is poured into a mold cavity. Sand casting is used primarily to produce gear blanks. Fully functioning spur, helical worm, cluster, and bevel gears are all made by gear casting.

Powder metallurgy – a high-precision forming method that’s cost-effective for small, high-quality spur, bevel, and spiral gears. Due to porosity, larger gears have less fatigue resistance.

Additive manufacturing (3D printing) – constructs a three-dimensional object layer by layer from a CAD model. Conventional and non-circular gears can be fabricated, and it has become a choice for repairs and mechanical projects.

Refinement Processes

Gear shaving – removes small amounts of material to improve tooth profile and spacing before heat treatment. Fast and cost-effective, but limited to softer materials.

Gear honing – improves surface texture and minor geometry errors after heat treatment. Commonly used when noise reduction is critical, such as in automotive transmissions.

Gear grinding – the highest-precision refinement method. Corrects distortion from heat treatment and achieves tight tolerances on profile, lead, and surface finish. Grinding is slower and more expensive but unavoidable for high-accuracy CNC gear applications.

CNC Multitasking for Gear Cutting

Traditionally, gear machining required multiple separate processes—turning, milling, and hobbing—each performed on a dedicated machine. Whenever the gear shape changed, different hobbing machines and cutters were needed. This meant frequent setup changes and increased workload for operators.

Today, multitasking machines allow you to complete various types of gear machining on a single machine—streamlining the process and boosting productivity. With a multi-tasking machine, you can simply choose the machining method that best suits your parts and produce the gear in a single setup.

On a multitasking machine equipped with an automatic tool changer (ATC), tool changes can be performed automatically if the necessary tools are preloaded in the magazine. By setting multiple hob cutters in advance, various types of gears can be machined on a single machine. For turret-type multitasking lathes, gear cutting is also possible using a hob holder.

Gear skiving on multitasking machines is not confined to ATC-equipped machines. With a dedicated skiving holder, it can also be performed on turret-type multitasking lathes.

NC options for gear cutting – When performing gear cutting on a multitasking machine, dedicated NC options are necessary to synchronize the spindle and cutter rotation axes.

• Electronic gearbox – synchronizes by having the slave spindle follow the master spindle’s feedback. It ensures high-precision synchronization but cannot be used for high-speed machining.

• Flexible synchronization – sends synchronization commands and feedback to both master and slave spindles from the NC. Allows control at high rotational speeds and is ideal for gear skiving operations.

EMAR’s multitasking machines equipped with the gear cutting option come with a standard module for generating hobbing programs. By simply inputting specifications in a dialogue format, the NC program is automatically created. If the flexible synchronization option is installed, a module for generating gear skiving programs is also included as a standard feature.

CNC Gear Machining Workflow

CNC gear machining follows a defined flow, but it’s not rigid. The order of operations and the decisions made at each step directly affect accuracy, cost, and whether the gear performs as intended once it’s in service.

1. Blank preparation – Raw material is turned to establish the bore, faces, and outer diameter. Concentricity is critical here. Any runout between the bore and the tooth form will show up later as uneven contact and noise.

2. Primary tooth generation – Hobbing, shaping, or broaching is selected based on gear type, volume, and geometry. The goal is repeatable tooth spacing and a consistent base profile.

3. Heat treatment – If required, it usually happens after initial cutting. Heat improves strength and wear resistance but also distorts the part. A good workflow plans for this distortion with allowances built into earlier steps.

4. Tooth refinement – Shaving, honing, or grinding corrects profile errors, improves surface finish, and tunes the contact pattern. This is where gears transition from “dimensionally acceptable” to mechanically reliable.

5. Supporting CNC operations – Milling keyways, drilling, or finishing hubs are sequenced carefully around tooth work. Features that affect fixturing or alignment are typically completed before final tooth finishing to avoid introducing new runout.

6. Inspection and verification – Tooth profile, lead, pitch, and runout are checked against specification, often using gear measurement equipment rather than general-purpose metrology.

A well-designed CNC gear machining workflow isn’t about doing more steps. It’s about doing the right steps in the right order, so accuracy is controlled gradually instead of being forced at the end.

Industrial Applications of CNC Gear Machining

Industrial Machinery and Power Transmission Systems

Industrial equipment places some of the highest demands on gear accuracy due to continuous operation and high load cycles.

Common applications:

• Gearboxes for conveyors, crushers, mixers, and extruders

• Speed reducers in manufacturing lines

• Heavy-duty pumps and compressors

Functional requirements driving CNC Machining:

• High load capacity with uniform tooth contact

• Consistent pitch accuracy to avoid vibration

• Controlled lead and profile modifications to handle shaft misalignment

In these systems, gears often run for thousands of hours without shutdown. CNC-machined gears allow engineers to intentionally introduce crowning, tip relief, and lead corrections that compensate for real operating conditions.

Automotive and Motion Control Components

Automotive and motion control applications demand a balance of precision, efficiency, and noise reduction, often at very high production volumes.

Typical components include:

• Transmission and differential gears

• Steering system gears

• Servo drive and actuator gears

Key functional drivers:

• Low noise, vibration, and harshness (NVH)

• High positional accuracy and repeatability

• Tight backlash control for smooth response

In motion control systems, even minor profile errors translate directly into positioning error, hunting, or resonance. In automotive drivetrains, precision machining directly affects customer-perceived quality—gear whine and vibration are often traced back to microns of geometric deviation.

Aerospace Field

Gears in aero-engines and spacecraft transmission mechanisms have extremely high requirements for precision and lightweight design. CNC gear machining can achieve micron-level machining accuracy while meeting the processing needs of high-strength materials.

New Energy Equipment Field

Gears in wind power generators and new energy vehicle drive motors need to adapt to high-speed, low-energy consumption operation. CNC machining technology can optimize the tooth surface machining process and reduce energy loss.

Precision Instrument and Robotics

Micro-gears in industrial robots and precision instruments have strict requirements for dimensional accuracy and transmission stability. CNC gear machining can precisely control tooth profile errors, ensuring precise transmission and positioning accuracy. In medical precision instruments, core transmission gears for nebulizer assembly machines rely on CNC gear machining technology to ensure stable and accurate assembly.

Custom Gears for Prototypes and Low-Volume Production

Prototyping, R&D, and specialized machinery frequently require one-off or low-volume gears with non-standard geometry.

Typical use cases:

• Prototype transmissions and gearboxes

• Replacement gears for legacy equipment

• Specialized robotics or test rigs

Why CNC machining is essential here:

• Flexibility in gear geometry without dedicated tooling

• Fast iteration cycles during design validation

• Ability to machine complex or non-standard profiles

Multi-axis CNC milling and power skiving make it possible to produce functional gears without the cost and lead time of hobs or shaping cutters.

For prototype and low-volume gear projects, the biggest risk is not cost, but discovering functional issues too late. EMAR supports custom CNC gear machining alongside high-precision milling and turning, helping engineers validate fit, function, and manufacturability before scaling production. Contact EMAR at +86 18664342076 or sales8@sjt-ic.com for support.

When CNC Gear Machining Is Not the Best Choice

CNC gear machining is powerful, but it’s not universal. Knowing when not to use it is just as important as knowing when it’s essential.

High-Volume Commodity Gears

For gears produced in very high volumes with standardized geometry, CNC machining is often the wrong economic choice.

Typical examples:

• Appliance gears

• Consumer product gear trains

• Standard automotive auxiliary gears

Why CNC falls short here:

• Cycle time per part is too slow compared to dedicated processes

• Tooling amortization favors specialized machines like hobbing lines or molding

• Geometry is fixed, so flexibility offers no advantage

In these cases, dedicated gear hobbing machines, multi-spindle automatics, or injection molding deliver far lower cost per unit.

Loose Tolerance or Non-Load-Bearing Applications

Not every gear needs micron-level control. When loads are low and motion accuracy isn’t critical, CNC precision can be unnecessary.

Common scenarios:

• Light-duty timing mechanisms

• Manual adjustment systems

• Decorative or indexing components

Why CNC may be overkill:

• Tooth profile accuracy doesn’t affect function

• Noise and efficiency aren’t critical performance metrics

• Simple cutting methods already meet requirements

Alternative Manufacturing Methods

Depending on volume, material, and performance requirements, several alternatives may be more appropriate:

• Gear hobbing for high-volume, standard gears

• Gear shaping for internal gears or shoulder-restricted designs

• Powder metallurgy for medium-load, high-volume gears

• Forging followed by finishing for high-strength applications

• Plastic molding for low-load, noise-sensitive systems

Each method trades flexibility for efficiency. CNC gear machining is strongest when geometry varies, tolerances matter, or volumes are low to medium.

Key Takeaways

• Gear machining is a multi-stage accuracy control process that extends beyond tooth cutting to include refinement, finishing, and inspection.

• Small deviations in tooth geometry accumulate over time, leading to increased noise, heat generation, and accelerated wear in service.

• Heat treatment enhances gear strength and durability but introduces distortion that must be anticipated and corrected during machining.

• Final functional performance is primarily determined by refinement processes such as honing or grinding, not by cutting operations alone.

• CNC gear machining is particularly effective for low-to-medium production volumes and custom gear applications where flexibility and precision are critical.

• Multitasking machines allow multiple gear machining operations (turning, hobbing, skiving, milling) to be completed in a single setup, improving productivity.

• Power skiving and InvoMilling™ (EMAR) are emerging technologies that offer flexibility and efficiency for both internal and external gears.

FAQ

What is the difference between gear machining and gear cutting?

Gear cutting is one part of gear machining. Cutting refers specifically to the process of generating gear teeth, while gear machining includes the entire workflow: blank preparation, tooth generation, refinement, finishing, and inspection. Machining gears is about achieving functional performance, not just forming teeth.

Which CNC process is best for machining gears?

There isn’t a single “best” process. The choice depends on gear type, accuracy class, and production volume. Hobbing is efficient for external gears, shaping works well for internal gears, and multi-axis CNC milling is common for prototypes and custom gear machining. The best process is the one that meets tolerance and surface requirements with minimal downstream correction.

What tolerances can CNC gear machining achieve?

With proper machine capability and process control, CNC gear machining can achieve ISO Grade 6–8 directly from cutting, and tighter grades when followed by grinding or honing. Actual results depend on material, heat treatment, and inspection strategy.

When is gear grinding required after cutting?

Gear grinding is typically required when tight noise or vibration limits exist, high-speed operation amplifies profile errors, or heat treatment distortion must be corrected.

Can custom gears be CNC machined in low volumes?

Yes, and this is where CNC gear machining shines. Prototypes, replacement gears, and small production runs benefit from CNC flexibility, minimal tooling, and fast iteration. For low-volume custom gears, CNC machining is often the most practical and economical option.

What is power skiving?

Power skiving is a continuous cutting process that is multiple times faster than shaping and more flexible than broaching. It can be applied to both internal and external gears and splines, and is especially productive for internal machining. It works well in mass production and can be applied in dedicated machines, multi-task machines, and machining centers.

What is InvoMilling™ from EMAR?

InvoMilling™ is a process for machining external gears, splines, and straight bevel gears that allows in-house gear milling in standard machines. By changing the CNC program instead of the tool, one tool set can be used for many gear profiles. It runs dry without cutting oil and is suitable for module range 0.8–100, small to medium batch production.
