Characteristics of CNC Turning Processing: A Complete Guide

CNC turning processing has revolutionized modern manufacturing, offering unparalleled precision, efficiency, and versatility for producing cylindrical and round components. From aerospace and automotive to medical and electronics industries, CNC turning plays a critical role in crafting high-quality parts that meet exact specifications. This comprehensive guide explores the key characteristics of CNC turning processing, including its operational features, material capabilities, tooling options, and significant advantages.

What is CNC Turning Processing?

CNC turning is a subtractive machining process where a workpiece is rotated at high speed while a stationary cutting tool removes material to create the desired shape. The term “CNC” refers to Computer Numerical Control, where computerized systems precisely manage the movement of the cutting tools. This ensures high accuracy, repeatability, and production efficiency.

Unlike milling, where the cutting tool moves around the workpiece, CNC turning revolves around a central axis, making it ideal for producing symmetrical shapes such as rods, shafts, bushings, and threads. Most workpieces with revolving surfaces can be processed by turning methods, including inner and outer cylindrical surfaces, inner and outer conical surfaces, end faces, grooves, threads, and rotary forming surfaces.

Key Characteristics of CNC Turning Processing

1. High Efficiency

CNC turning offers significantly higher efficiency compared to traditional grinding. Turning often employs large cutting depths and high workpiece speeds, with metal removal rates typically several times that of grinding. In CNC turning, multiple surface operations can be completed in a single clamping, while grinding requires multiple installations. This reduces auxiliary time and ensures high positional accuracy between machined surfaces.

For high-volume production, operations like turning and drilling are particularly well-suited as they can be easily automated for maximum efficiency. CNC lathes equipped with bar feeders or automatic tool changers further enhance productivity by reducing downtime between operations.

2. Low Equipment Investment Cost

When productivity levels are equal, the investment cost of a lathe is significantly lower than that of a grinder, and the cost of auxiliary systems is also reduced. For small batch production, CNC turning does not require special equipment. However, large batch processing of high-precision parts requires CNC machine tools with good rigidity, high positioning accuracy, and repeatable positioning accuracy.

3. Suitable for Small Batch Flexible Production

The lathe itself is a flexible processing method with a wide processing range. Lathes are easy to operate, and CNC turning and clamping are fast. Compared with grinding, hard turning can better meet the requirements of flexible production. CNC turning seamlessly integrates with CAD/CAM systems, streamlining the entire production process from design to finished product.

4. Excellent Overall Machining Accuracy

Most of the heat produced in hard CNC turning is taken away by the cutting oil, resulting in no surface burns or cracks like those often seen with grinding. CNC turning machines can achieve tolerances as tight as ±0.0001 inches (2.54 microns), surpassing the capabilities of manual lathes. High positional accuracy is maintained throughout the process.

5. Superior Repeatability

Once programmed, CNC lathes can produce identical parts with consistent quality, regardless of the production run size. Whether you’re making 10 or 10,000 parts, they will come out exactly the same. This repeatability is essential for industries where component consistency is critical.

6. Complex Geometry Capabilities

Although less versatile than milling, CNC turning can create intricate shapes and features that would be difficult to achieve with manual turning. Advanced CNC turning centers with multi-axis capabilities and live tooling allow for milling, drilling, and other operations to be performed on the workpiece while it remains in the lathe. This reduces setup times and improves accuracy.

7. Reduced Human Error

By minimizing human intervention in the machining process, CNC turning greatly reduces the risk of errors associated with manual operations. This leads to fewer defects, less waste, and consistently high-quality output.

8. Improved Surface Finish

CNC turning can achieve superior surface finishes compared to manual methods, often eliminating the need for secondary finishing operations. This reduces production time and costs while enhancing the functional and aesthetic qualities of the final part.

9. Enhanced Safety

All cutting operations take place behind machine guards, meaning operators are never near the rotating material. This eliminates the risks typical with manual turning machines. Advanced safety protocols such as automated system checks and emergency shutdowns further enhance operational safety.

10. Design Flexibility

Complex shapes, threads, and features that would be tricky or impossible to produce manually are easily achievable with the CNC turning process. From simple cylindrical parts to complex geometries with tight tolerances, CNC turning adapts to meet diverse manufacturing needs.

Types of CNC Turning Operations

CNC turning encompasses a wide range of techniques, each suited for specific tasks. Understanding these operations is crucial for selecting the right process for your project.

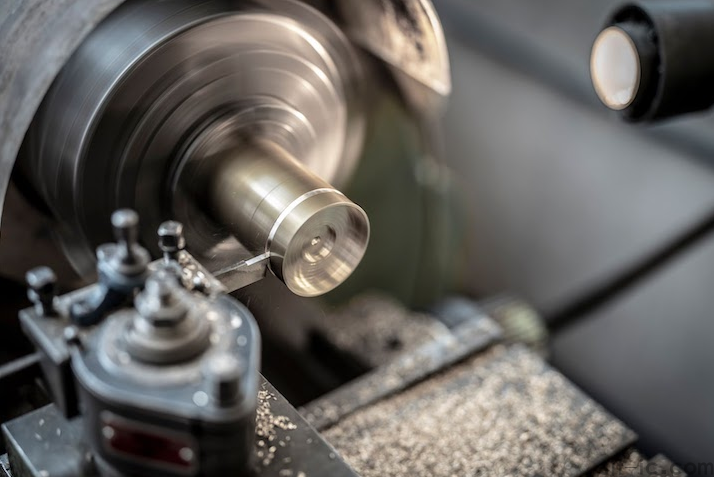

Turning (Straight Turning)

The most fundamental operation where the cutting tool removes material to produce a cylindrical shape. It can create straight, tapered, or contoured surfaces and offers high precision for both external and internal surfaces. Applications include shafts, bushings, and other cylindrical components.

Facing

Involves cutting across the end of the workpiece to produce a flat surface perpendicular to its axis. It ensures precise length and surface finish and prepares workpieces for further machining such as drilling or threading. Commonly used for flanges, gears, and pulleys.

Taper Turning

The cutting tool moves at an angle to the workpiece axis to create a cone-like shape. This is common in components like lathe tailstock centers or machine handles where the diameter needs to gradually change.

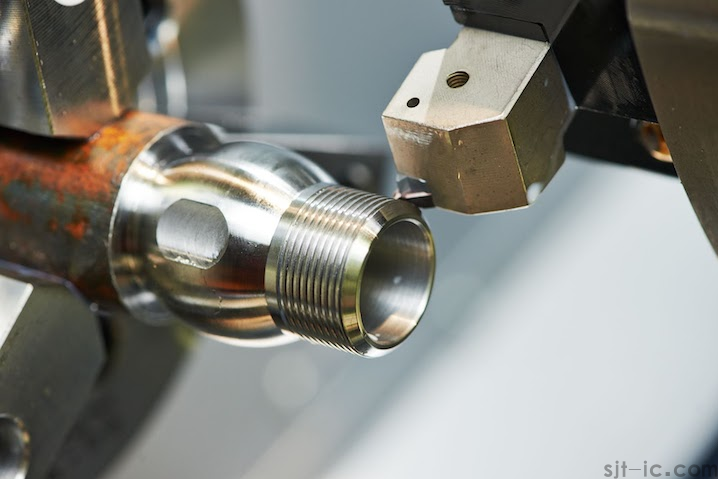

Threading

Involves cutting helical grooves (threads) into the surface of a cylindrical workpiece for fasteners or connections such as bolts and nuts. Produces internal or external threads with metric or imperial profiles. Essential in automotive, construction, and pipe systems.

Tapping

Similar to threading but specifically creates internal threads within a hole, preparing the workpiece for screws or bolts. Achieves precise thread sizes for various fasteners and is suitable for metal, plastic, or composite materials.

Grooving

Cuts narrow channels into the workpiece’s surface, either internal or external. Provides precise control over groove depth and width, creating features for retaining rings or seals. Essential in hydraulic systems and sealing applications.

Parting (Cut-off)

Separates a finished component from the workpiece, ensuring clean separation with minimal waste. Common in high-volume production for manufacturing individual components like gears and rings efficiently.

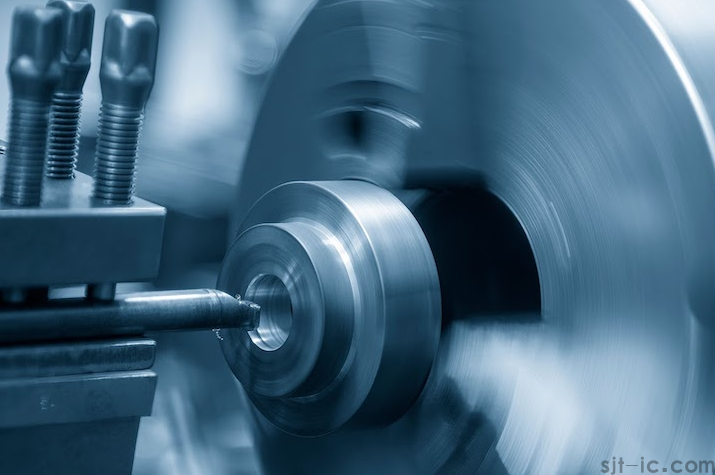

Boring

Enlarges an existing hole or cavity within the workpiece, achieving tight tolerances for internal diameters. Used for both concentric and eccentric holes. Common in automotive and aerospace industries for engine components and hydraulic systems.

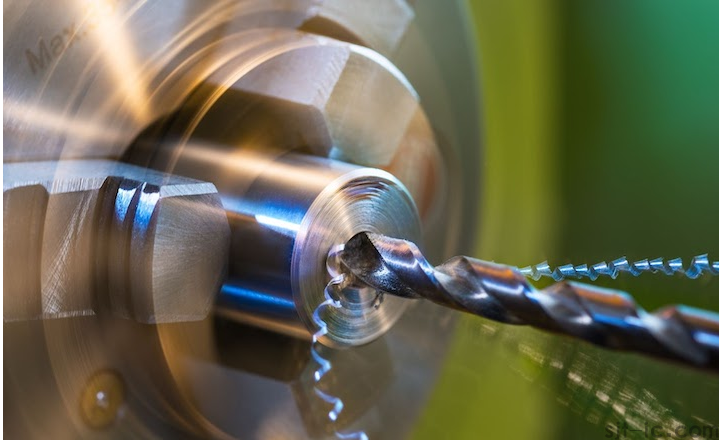

Drilling

Creates holes along the workpiece’s axis using a rotating cutting tool. Can produce holes of varying diameters, with high-speed drilling ensuring efficiency in mass production. Used for engine blocks, brackets, and panels.

Reaming

Enlarges and refines the finish of a pre-drilled hole, improving dimensional accuracy and surface quality. Ideal for achieving precise fits for pins or shafts in engine assembly and tooling.

Knurling

Produces a textured pattern (cross-hatched, straight, or angled) on the workpiece’s surface to improve grip. Used in tools, handles, and control knobs to enhance user interaction and aesthetics.

Tool Materials for CNC Turning

Selecting the appropriate cutting tool material is critical for optimal CNC turning performance. Different materials require different approaches, and the choice of cutting tools, speed, and feed rates will vary accordingly.

Coated Carbide Cutting Tools

These tools are coated with one or more layers of wear-resistant material on carbide substrates with better toughness. The coating provides lower thermal conductivity than the matrix and workpiece material, reducing the thermal effect on the tool matrix. It also effectively improves friction and adhesion during cutting, reducing cutting heat generation. Compared with standard cemented carbide tools, coated carbide tools offer significant improvements in strength, hardness, and wear resistance.

Ceramic Material Tools

Ceramic cutting tools feature high hardness, high strength, good wear resistance, excellent chemical stability, good anti-bonding performance, low friction coefficient, and low price. In normal use, durability is extremely high, and cutting speeds can be several times higher than cemented carbide. They are especially suitable for high-hardness material processing, finishing, and high-speed processing.

Cubic Boron Nitride (CBN) Tools

The hardness and wear resistance of cubic boron nitride are second only to diamond, and it has excellent high-temperature hardness. Compared with ceramic tools, its heat resistance and chemical stability are slightly worse, but its impact strength and crush resistance are better. CBN is widely used for cutting hardened steel, pearlitic gray cast iron, chilled cast iron, and superalloys. Compared with carbide tools, cutting speed can even be increased by an order of magnitude.

Selection of Cutting Oil

Proper cutting oil selection is essential for maximizing tool life and surface finish quality.

• Tool steel tools have poor heat resistance and lose hardness at high temperatures. They require cutting oil with good cooling performance, low viscosity, and good fluidity.

• High-speed steel tools used for high-speed rough cutting generate large amounts of cutting heat and require cutting oil with good cooling. For medium and low-speed finishing, low-viscosity cutting oil is generally used to reduce frictional bonding and improve machining precision.

• Cemented carbide tools have higher melting point, hardness, and better chemical and thermal stability. Active sulfur cutting oil can be used in general machining. For heavy cutting with very high temperatures, inactive sulfur cutting oil should be used with increased flow to ensure sufficient cooling and lubrication.

• Ceramic tools, diamond tools, and CBN tools have high hardness and wear resistance. Low-viscosity inactive sulfur cutting oil is generally used during cutting to ensure surface finish quality.




Materials Used in CNC Turning

CNC turning is highly versatile when it comes to materials. Common metals include:

• Aluminum – Lightweight, easy to machine, ideal for aerospace and automotive applications.

• Stainless Steel – Strong, corrosion-resistant, suitable for medical and food-grade components.

• Brass – Smooth to cut, perfect for fittings and decorative parts.

• Titanium – Excellent strength-to-weight ratio and corrosion resistance.

Common plastics include:

• Nylon – Strong and flexible.

• PTFE (Teflon) – Heat- and chemical-resistant.

• ABS – Affordable and easy to work with.

Material choice depends on factors such as heat tolerance, rigidity, and required surface finish. Harder materials like titanium or hardened steels require more robust cutting tools with specialized coatings. Softer materials like aluminum or plastics allow for higher cutting speeds but require careful chip formation and evacuation.

Advantages of CNC Turning Processing

Accuracy You Can Trust

With the right setup, tolerances within a few microns are standard. This level of precision is why CNC turning is trusted for aerospace components, surgical tools, and other mission-critical parts.

Speed and Efficiency

Once the program is set, production runs can move quickly, especially when using bar feeders and multi-spindle CNC turning machines. Rapid prototyping is also highly efficient, with quick turnaround times valuable for fast-paced sectors.

Cost-Effectiveness

High setup costs are offset by low per-part prices in medium to high volumes. The integration of CAD/CAM systems reduces programming time and errors.

Scalability and Automation

For large-scale production, CNC turning centers equipped with automatic tool changers and advanced robotics offer unprecedented scalability. Automation reduces human errors and enhances both speed and accuracy.

Flexibility

From simple cylindrical parts to complex geometries, from one-off prototypes to high-volume production, CNC turning adapts to meet different manufacturing needs.

Key Considerations for CNC Turning Operations

Material Type

Understanding how the material responds to machining is critical. Metals like aluminum allow faster cutting speeds and lower tool wear. Steel requires slower speeds and more robust tooling. Plastics and composites need lower cutting speeds to avoid melting or deforming.

Part Complexity

Simple cylindrical components can be produced using basic turning processes. Intricate designs may demand advanced operations like threading, grooving, or knurling. Complex geometries benefit from multi-axis CNC lathes.

Production Volume

High-volume production benefits from operations like turning and drilling that can be easily automated. Low-volume or custom projects prioritize precision over speed, using operations like boring or reaming.

Tolerances and Surface Finish

Industries like medical and aerospace demand exceptionally tight tolerances and superior surface finishes. Reaming and threading operations are essential for meeting these requirements.

Machine Capabilities

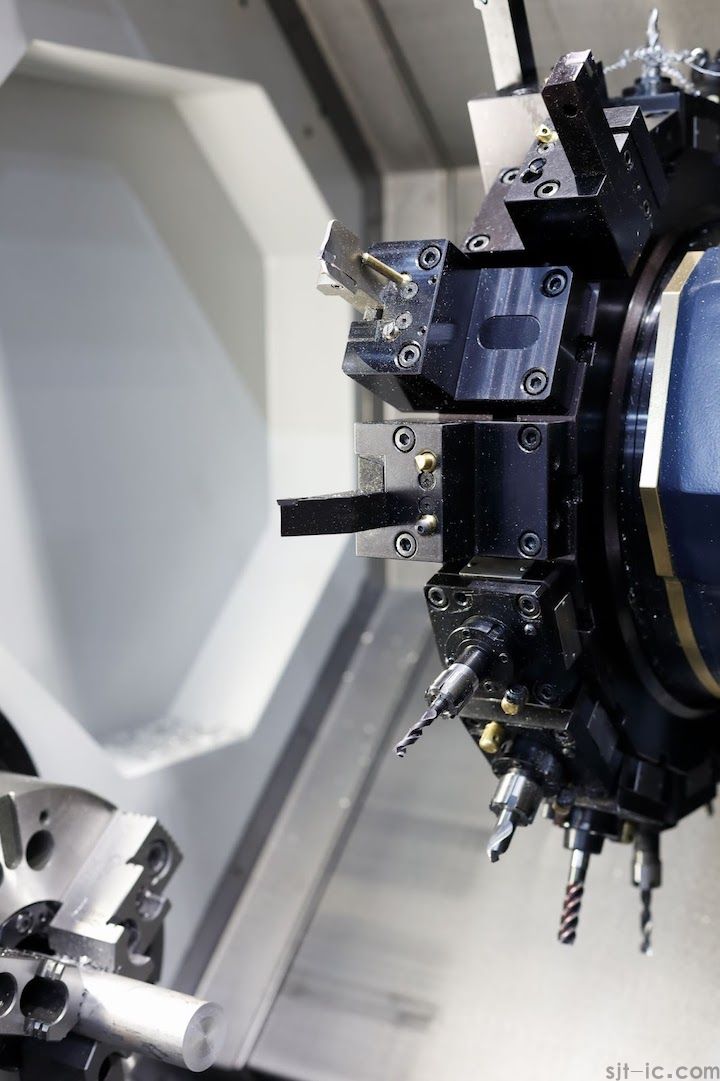

Modern CNC machines offer advanced features such as multi-axis capabilities and live tooling, allowing complex parts to be machined in a single setup. Advanced CAD/CAM systems enable precise programming and quick adjustments.

Applications and Industries

CNC turning is used across numerous industries:

• Automotive – Gears, shafts, axles, drive shafts, camshafts, crankshafts, and bushings.

• Aerospace – Couplings, nozzles, shafts, bushings, and hydraulic fittings.

• Medical – Surgical tools, implants, fasteners, and housings.

• Oil and Gas – Valves, pump parts, and hydraulic fittings.

• Electronics – Connectors, terminals, and housings.

The Future of CNC Turning Processing

With advancements in technology, CNC turning operations are becoming more efficient and versatile. Innovations such as multi-tasking CNC machines integrate turning with other processes like milling and drilling, reducing setup time and improving productivity. The use of AI-powered tools for real-time monitoring and predictive maintenance helps ensure consistent quality and prolongs machine lifespan.

Emerging technologies, including real-time monitoring and adaptive controls, help optimize operations by adjusting cutting parameters based on the material’s response. These innovations reduce waste, prolong tool life, and ensure consistent quality. For businesses looking to stay competitive, these advanced solutions provide a significant edge, enabling faster turnaround times and superior results across a wide range of industries.

Conclusion

CNC turning processing is integral to precision machining, offering a wide range of techniques to meet diverse manufacturing needs. From threading and tapping to facing and boring, each operation plays a critical role in producing high-quality components with efficiency and accuracy. The characteristics of CNC turning—high efficiency, accuracy, repeatability, flexibility, safety, and cost-effectiveness—make it indispensable in modern manufacturing.
